Product Category

ESD Ionizing Air Blower Gun

Quantity:

Share this:

Inquire Add To Basket

Brand: Jingya
Code: JY-612
Model Number: JY-612
Type: Electric Blower
Brand Name: Jingya

Product Description

DESCRIPTION

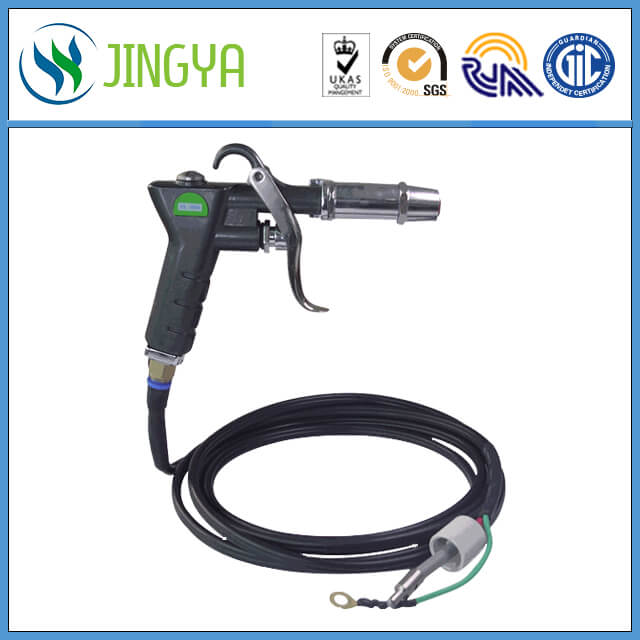

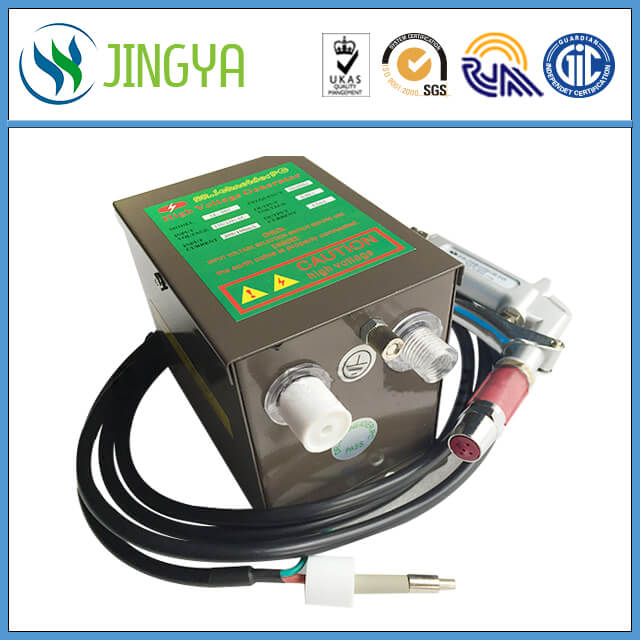

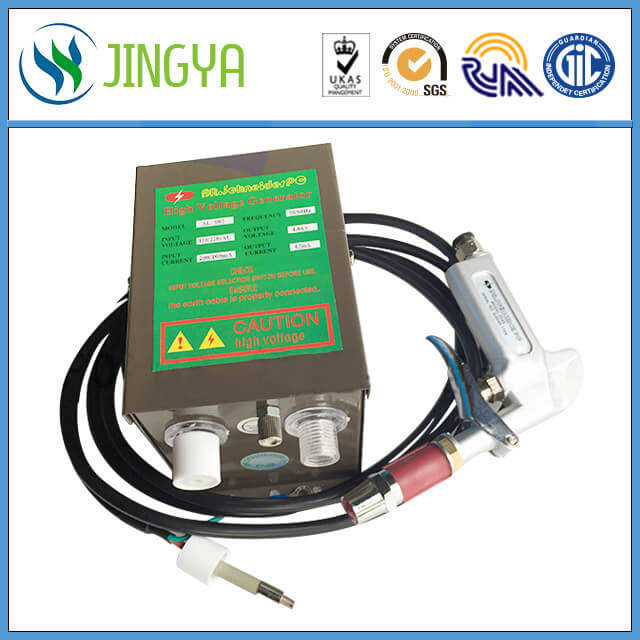

ion air gun is a strong ion wind available to the object to eliminate static electricity on the handheld device. Designed for high winds and in the amount of dust and static electricity. Is widely used in precision electronic products, electronic assembly line, medical manufacturing. Ions up to 1 meter distance, needs, and SL-007 integrates the use of high-voltage power supply (high-voltage power supply sold separately).

SPECIFICATION

Operating Voltage	4.6KV(ST401A)
Current Consumption	200uA
Operating Temperature	0-50
Air Volume	0.5kg
HV cable length	3meters
Air velocity	40~70psi
Operting air velocity	10m/sec

TEST RESULTS

Decay Test Conditions
Operating Voltage 4.6kvTesting Voltage()1KV to 100V Temperature22
Distance		300mm	600mm	900mm
Decay time	Positive	0.4s	0.5s	1.1s
Decay time	Nefative	0.4s	0.5s	0.9s
Offset voltage	Positive	-23V	-18V	+14V
Offset voltage	Nefative	-29V	-16V	+17V

NOTES

1, wind speed test at 150mm;
2, ion testing at a distance of 150mm;
3, the test data will change with the environmental conditions
