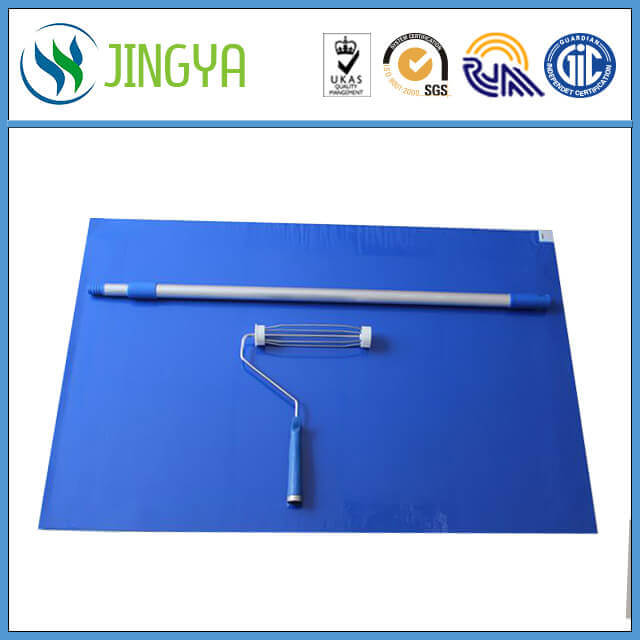

High Quality Cleanroom Sticky Mat High Quality Cleanroom Sticky Mat

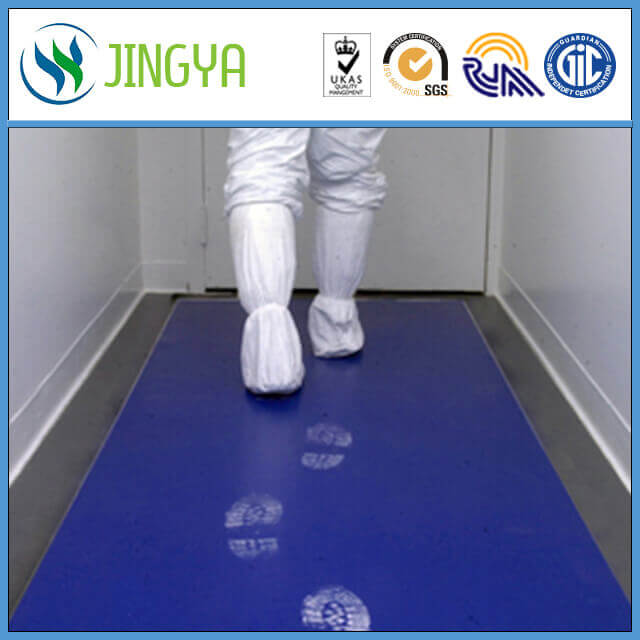

Sticky mat is synthesized in the latest chemical methods, which make the adhesion of per sticky mat be same. No glue, no smell, no poison. Sticky mat is mainly applied to the entrance of the clean space and buffer zone. It can effectively reduce the dust on the soles and wheels and reduce the influence of dust on clean environment in order to remove dust simply and sovle the problem where other mats can not be able to remove dust completely.

Size:
  • 18"x36"
  • 24"x36"
  • 26"x45"
Quantity:
Share this:
  • Brand: Jingya
  • Code: JY-201
  • Color: Blue/White
  • Model Number: JY-201
  • Application: IT electronic/pharmaceutical medical/food industry
  • Size: 18"x36"/24"x36"/26"x45"/customized
  • Packing: 30layers/mat,10mats/box
  • Brand Name: Jingya
  • Layer: 30
  • Film Material: LDPE
  • Adhesive material: water-based acrylic
  • Product Description

Sticky mat is synthesized in the latest chemical methods, which make the adhesion of per sticky mat be same. No glue, no smell, no poison. Sticky mat is mainly applied to the entrance of the clean space and buffer zone. It can effectively reduce the dust on the soles and wheels and reduce the influence of dust on clean environment in order to remove dust simply and sovle the problem where other mats can not be able to remove dust completely.




Product Sticky Mat
Film Material Low Density Polyethylene (LDPE) (environmentally)
Adhesive Material Water-based acrylic
Color Blue/White
Specification ( inch) 26”*45  24*36  18*36 customizable

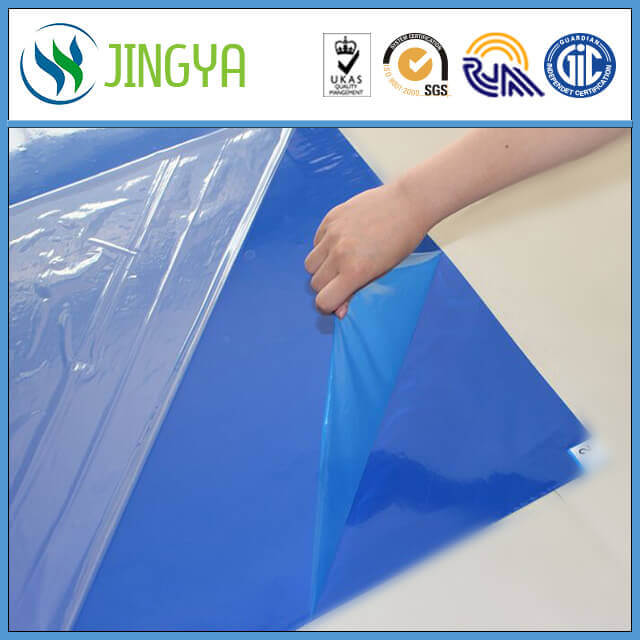

Structure 30 pages per sheet (actually 32 pages),the thickness of the first page is 55um,The second to the thirty-first is 63um,the last is 55um
The adhesion of 1-29 layers 500g/25mm + / - 10  medium, high, low
The adhesion  of the bottom 500g/25mm + / - 10  medium, high, low
Sticky capacity 99.9% (5 steps)
Temperature 60 degrees
Shelf life 8 months

Technical Data

NO. Test items Testing standard Testing result
1 Vertical tensile strength (MPA) ≥10 20
2 Horizontal tensile strength  (MPA) ≥8 17
3 Vertica elongation (%) ≥150 210
4 Horizontal elongation (%) ≥200 255
5 Glue state
Bright and uniform
6 Thickness 0.035MM ±0.005 0.035MM
7 Initial adhesion (G/IN2) LOOPTACK 500
8 180 degree peel strength (SS.G/25MM) GB2792-81 380
9 Sticky(MIN) GB4851-98 1440
10 High temperature and humidity test Q/DT1-2004 80 degrees
11 Heat resistance test Q/DT1-2004
12 Aging property Q/DT1-2004 8 months

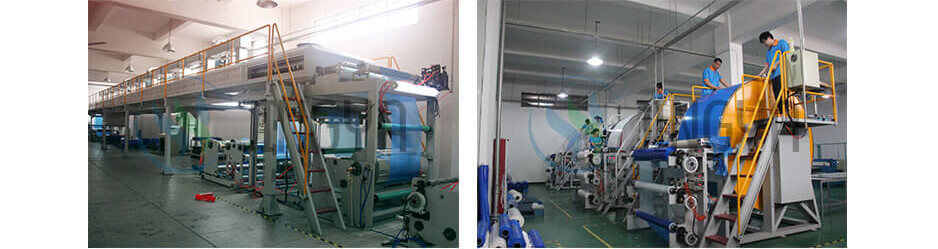

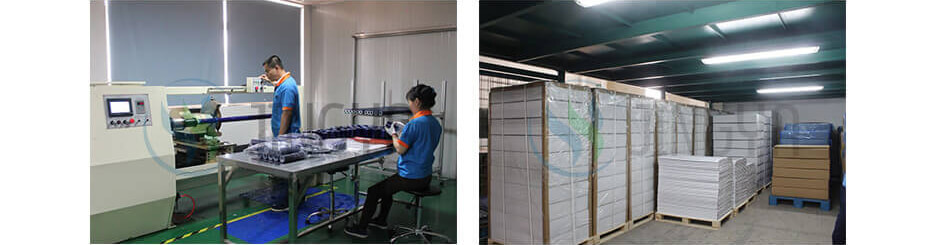

Workshop

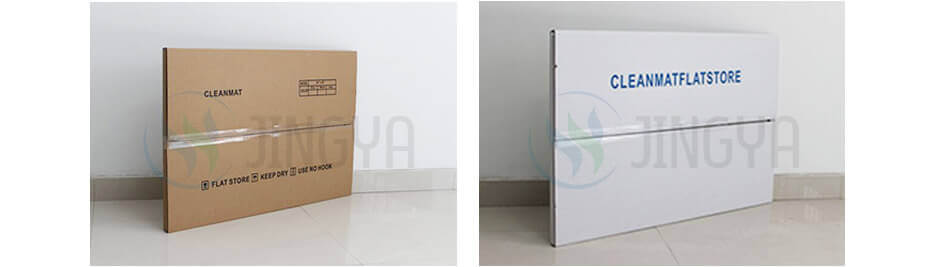

                                 Packing
  Packing








More than 4000 companies trust our cleanroom wiper which covers wide industry like BOE、LG、TCL、SONY and so on.
