High Quality Cleanroom Sticky Mat

Sticky mat is synthesized in the latest chemical methods, which make the adhesion of per sticky mat be same. No glue, no smell, no poison.

Size:

18"x36"
24"x36"
26"x45"

Quantity:

Share this:

Inquire Add To Basket

Brand: Jingya
Code: JY-201
Color: Blue/White
Model Number: JY-201
Application: IT electronic/pharmaceutical medical/food industry
Size: 18
Packing: 30layers/mat,10mats/box
Brand Name: Jingya
Layer: 30
Film Material: LDPE
Adhesive material: water-based acrylic

Product Description

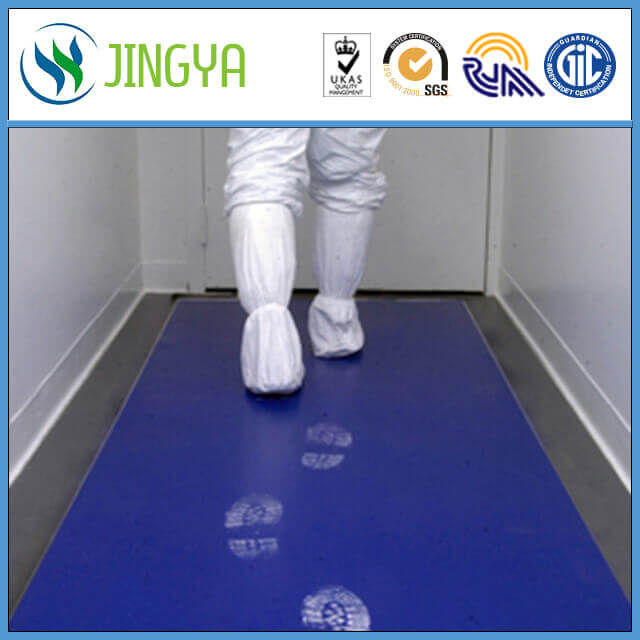

Sticky mat is synthesized in the latest chemical methods, which make the adhesion of per sticky mat be same. No glue, no smell, no poison. Sticky mat is mainly applied to the entrance of the clean space and buffer zone. It can effectively reduce the dust on the soles and wheels and reduce the influence of dust on clean environment in order to remove dust simply and sovle the problem where other mats can not be able to remove dust completely.

Product	Sticky Mat
Film Material	Low Density Polyethylene (LDPE) (environmentally)
Adhesive Material	Water-based acrylic
Color	Blue/White
Specification ( inch)	26”45 2436 18*36 （customizable）
Structure	30 pages per sheet (actually 32 pages),the thickness of the first page is 55um,The second to the thirty-first is 63um,the last is 55um
The adhesion of 1-29 layers	500g/25mm + / - 10 medium, high, low
The adhesion of the bottom	500g/25mm + / - 10 medium, high, low
Sticky capacity	99.9% (5 steps)
Temperature	60 degrees
Shelf life	8 months

Technical Data

NO.	Test items	Testing standard	Testing result
1	Vertical tensile strength (MPA)	≥10	20
2	Horizontal tensile strength (MPA)	≥8	17
3	Vertica elongation (%)	≥150	210
4	Horizontal elongation (%)	≥200	255
5	Glue state		Bright and uniform
6	Thickness	0.035MM ±0.005	0.035MM
7	Initial adhesion (G/IN2)	LOOPTACK	500
8	180 degree peel strength （SS.G/25MM）	GB2792-81	380
9	Sticky（MIN）	GB4851-98	1440
10	High temperature and humidity test	Q/DT1-2004	80 degrees
11	Heat resistance test	Q/DT1-2004
12	Aging property	Q/DT1-2004	8 months

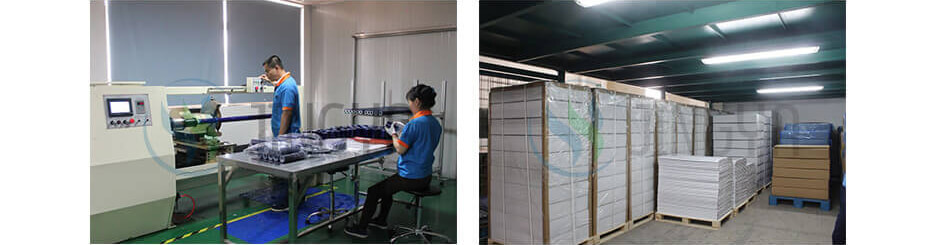

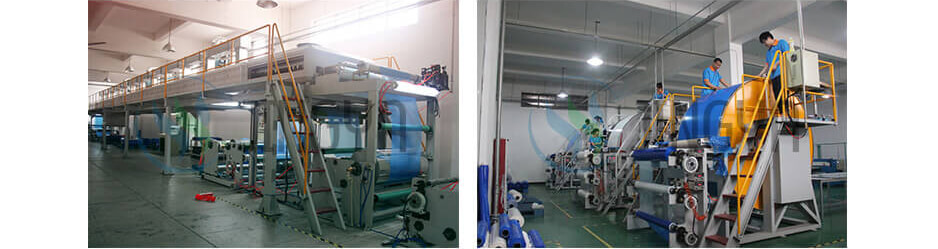

Workshop

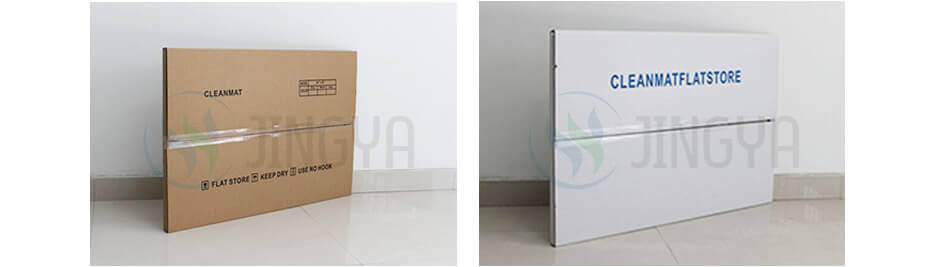

Packing

More than 4000 companies trust our cleanroom wiper which covers wide industry like BOE、LG、TCL、SONY and so on.
